Dial Machines
Dial machines are the ultimate one piece flow. Break up the necessary machining operations into smaller single station machining cells. Use the dial indexing table to advance the parts through the stations one at a time. This shortens to the cyle time to one operation plus indexing time.
174H Construction Nut bore and tap
174H Construction Nut boring unit
174H Nut bore 6495 Holomatic Unit
174H Construction Nut Bore station
174H Nut Tapping Slide and spindle
174H Nut Tap Spindle
174H Nut Tapper pin stamp
174H Construction Nut Tap Station
174H Construction Nut Part Picture
174H 4-Station Dial Index Machine With Auto-Loader, Boring Units, Tapping Units, Part Marking and Auto-Loader
This machine runs various heavy construction hex nuts. The feeder system brings the nuts to the load station where the machine picks and places 2 parts into the machine. The nuts are bored and then tapped before being pin-stamped with the product and heat number prior to being unloaded into the customer’s hopper.
- Feeder with auto-load
- (2) Model 6495 hydraulic Holomatics with 10 HP AC spindle motors.
- (2) 2288 Servo slides with 4” servo spindles
- Tekno-for Pin stamping units.
- 32” dial plate
- Spectrum Feeder System
173H Roll Form Dial Machine
173H Brass water fitting dial machine
173H Roll Form Dial Machine
173H Brass fitting dial machine
173H 6-Station Dial Index Machine With Robot Loader Roll Forming The Edge Of Garden Hose Nipples.
This little machine runs FAST. With around a 1 second cycle, over 3000 pieces a hour are produced. With integrated bowl feeder and robot load / unload, the operator is free to accomplish other tasks.
- Bowl Feeder with robotic load / unload
- Hause model 2497 Holomatic unit with drawbar actuated custom roller head.
- Landis die head with Hause manufactured rollers.
- Fibro cam style indexer
- Air powered collet fixtures
- 1 second cycletime
More at: Roll Forming Fitting – YouTube
124H Clevis Dial Machine
124H Clevis Dial tap
124H Clevis Dial Fixture
124H Part photo
124H 8-Station Dial Index Machine For Drilling And Tapping Chain Shackles
This machine has 5 machining stations, 1 loading, and 1 unloading. Operator loads and actuates the machine, which then center drills, drills, and taps the chain shackles. The machine also unloads the parts automatically and washes the fixture.
- (5) Hause model 8604 servo ballscrew units
- Pneumatic pick and place auto-unloader
- Fibro Servo indexer
- Custom double jaw self-centering vises.
178H Oil Filter tapping fixture
178H Oil FIlter Dial Machine
178H Oil FIlter feeder
178H Oil Filter dial escapement
178H Oil filter tapping Unit
178H Oil Filter dial MSH
178H Oil Filter Dial

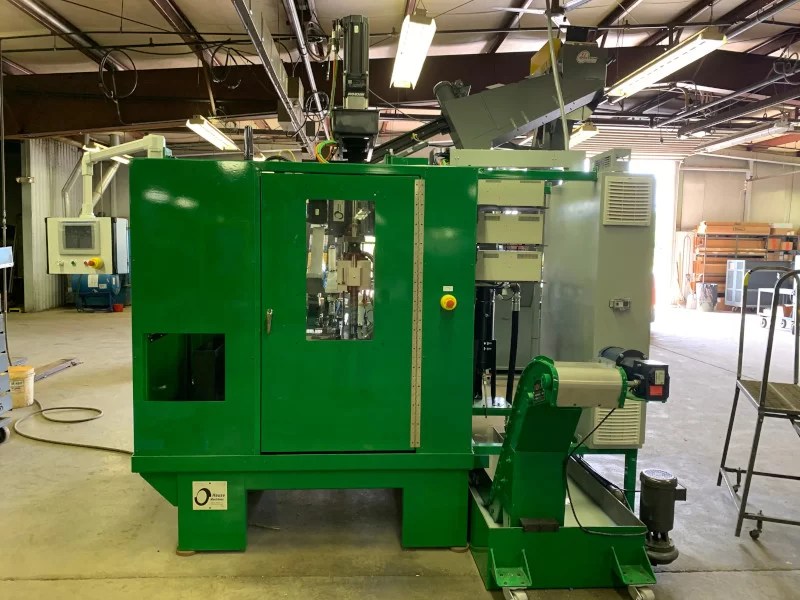

178H Machine
178H 4-Station Oil Filter Tapping Machine With Robots
Although this machine only has (1) machining station, it produces a lot of parts. It taps (4) oil filter plates at a time, and with auto-load and unload, (1) operator can easily run (2) machines. The robots find the holes in the parts, and then load the parts over pins in the fixtures to keep them from rotating.
Spectrum feeder:
- (2) Scara style robots with spring-loaded pneumatic grippers
- (16) fixtures
- (1) Hause model 8604 2-axis tapping unit with a 4-spindle head
- (1) cam style indexer
- (1) Scara-style robot with (4) pneumatic grippers unload the machine.
More at: Oil Filter Tapping Machine – YouTube
114H ar-15 trigger saw broach and drill machine with feeders
114H AR trigger dial fixture
114H AR Trigger Broach
114H AR Trigger dial drill
114H AR Trigger Saw
114H Trigger Dial Saw
114H Trigger Dial Feeder
114H Dial with feeder
114H Trigger Part
114H Dial Machine with Saw, Broach, and Drill for AR-15 Triggers with feeder
This machine has quite a bit going on. A bowl feeder sorts the parts and a pneumatic pick and place loads them into the dial machine. The triggers are then broached for the sear edge, saw cut, drilled, reamed and have a endmill make a spring pocket. These are then auto-unloaded.
- Bowl Feeder with sound enclosure
- Pneumatic Pick and place
- (2) jaw self-centering fixture
- Broaching station
- Saw stations
- Drill station
- Ream station
- Mill Station
