Horizontal & Double-end Machines
Hause has designed and built hundreds of double-end machines. We often start with our “Basic” Single End or Double-end, an untooled version with no fixture, and modify to suit.
We also offer fully custom double-end machines. Needing to prep shafts for a lathe? Pipe nipples, tubing, or face and center? Door hinges, rod ends are all manufactured using these machines. Start with a “basic” untooled machine and add your own fixture or have Hause design one just for your product.
The machining unit could be servo, dual servo, hydraulic, air, or leadscrew for tapping or die head threading.
915H Steel tube chamfer
967H Double end

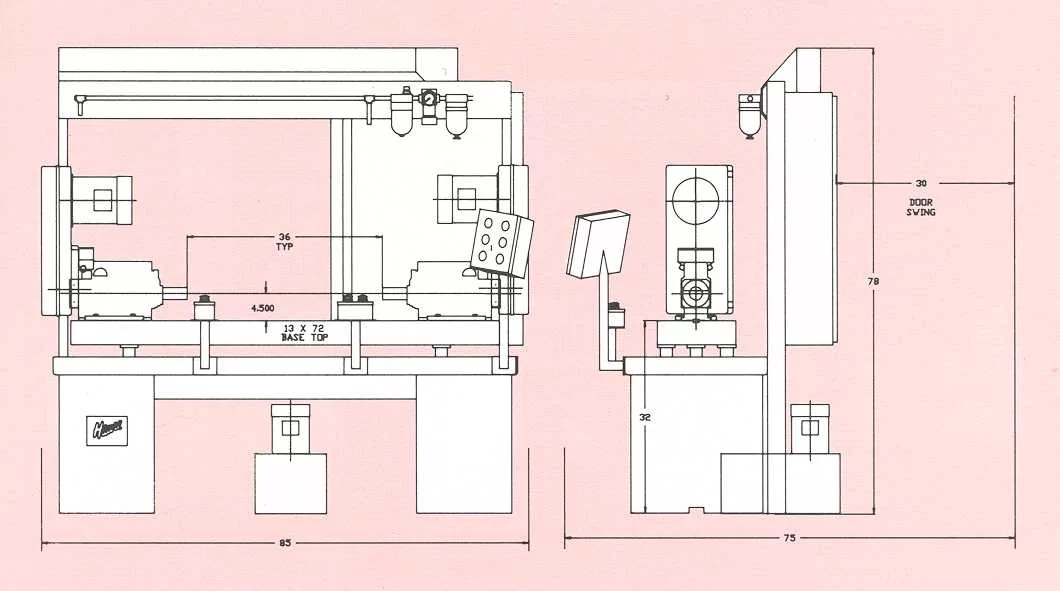

Basic 001
Basic 002

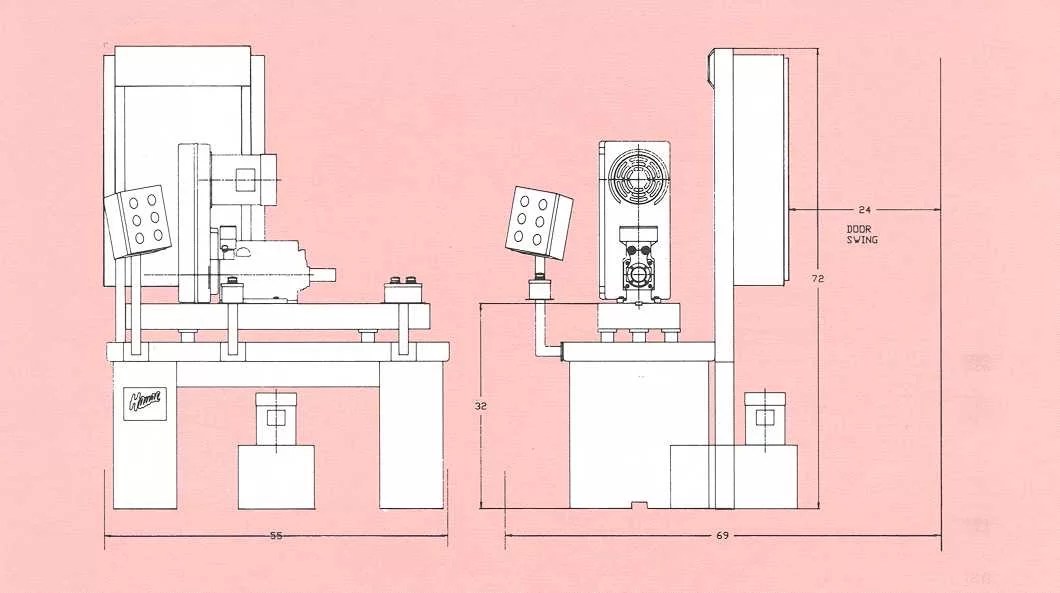

Basic 003

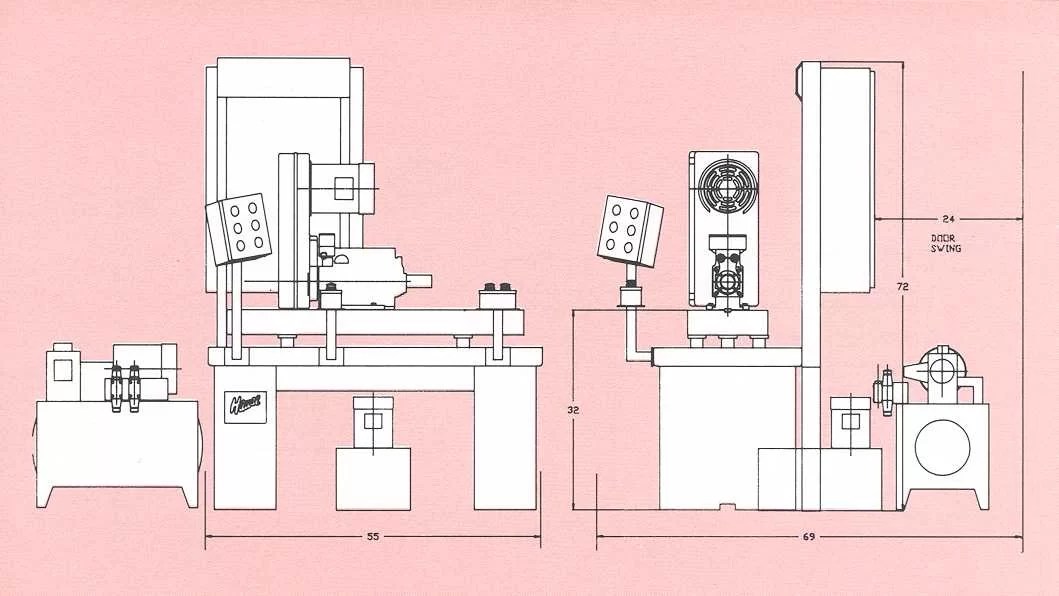

Basic 004
Horizontal Double End
146H Brass valve centering
146h Double End Centering
915H – steel tube face and chamfer

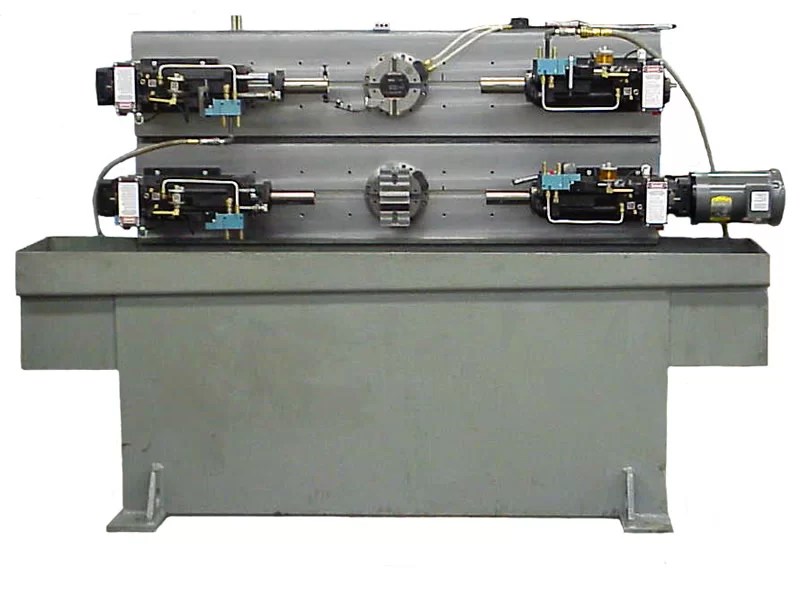

Basic Horizontals: Servo, Hydraulic, Air-Hydraulic, Leadscrew, and Pneumatic
Everything you need to build your own. Two machining units have a 13 x 72″ base, a coolant system, a hydraulic system (optional), and a control package with a basic manual and automatic controls of the unit and fixture. Add your fixture and tools and you are ready to go.
- 13 x 48″ or 13″ x 72″ fixture mounting area
- 3/8″ pneumatic FRL and (2) valves
- 20-gallon coolant system
- Allen Bradley Micrologix PLC
- 6″ HMI.
159H steel pipe nipple threading and chamfer
168H yoke operated die head threading
147H electrical conduit roll form threading machine
158H – stainless threader

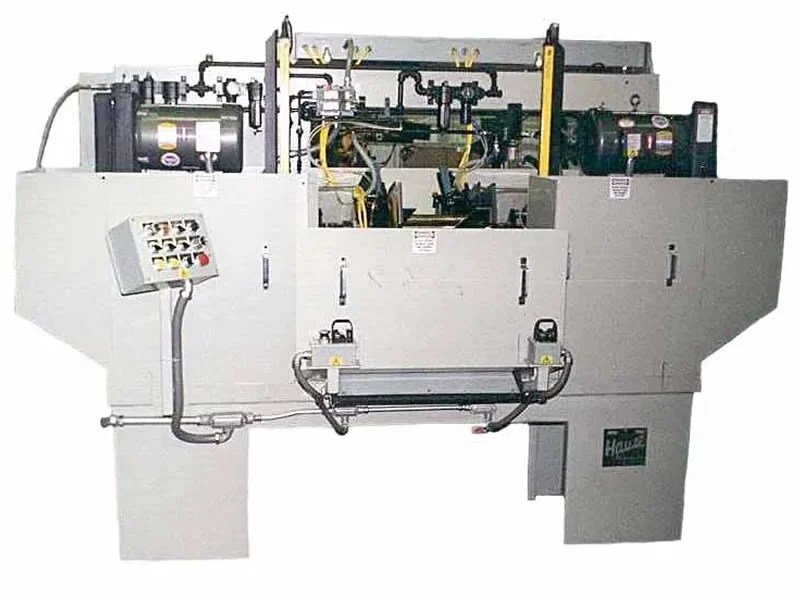

833H Brass Pipe- Double end threader
833H Brass Pipe Threader-2
double end threader2
double end threader
yoke operated leadscrew threader
147H chute fed double end roll form thread
147H Double End Threader
147H, 159H, 168H, 833H and 897H Chute-fed Double-end Drilling, Facing, or Threading Machines
We’ve solved this many times. Double-ended threading machines for making pipe nipples, water pipe, gas and oil pipe, sprayer tubes, shock absorber shafts, etc. Double-end ID / OD and face machines for tubes. For other custom machine needs, contact Hause Machines
- (2) Hause 6″ spindles
- Yoke operated Die heads
- Pneumatic or Hydraulic Clamp
- Auto-load / Unload
- 80 gallon coolant
- Threads both ends of pipe while reaming / deburring
854H Aluminum and copper tube chamfer
859H chamfer machine
859H Double end steel tube face and chamfer
963H tube chamfer
964H double end chamfer
969H double end chamfer
969H Fixture-Mag
double end chamfer
double end chamfer2
138H aluminum and copper chamfering macine
138H chute fed servo chamfer machine
138H chute feed
821H double end face and chamfer
138H, 821H, 854H, 859H and 963H Chute-fed Chamfering, Facing, or Threading Machines
We’ve solved this many times. Double-ended tube chamfering machines for cleaning up after saw cutting or any other burr making process. Double-end ID / OD and face machines for tubes. For other custom machine needs, contact Hause Machines
- (2) Hause 8404 Ballscrew units
- Custom ID / OD chamfer heads
- Pneumatic or Hydraulic Clamp
- Auto-load / Unload
- 80 gallon coolant
160H Welded yoke centering machine
130H steel shaft centering machine

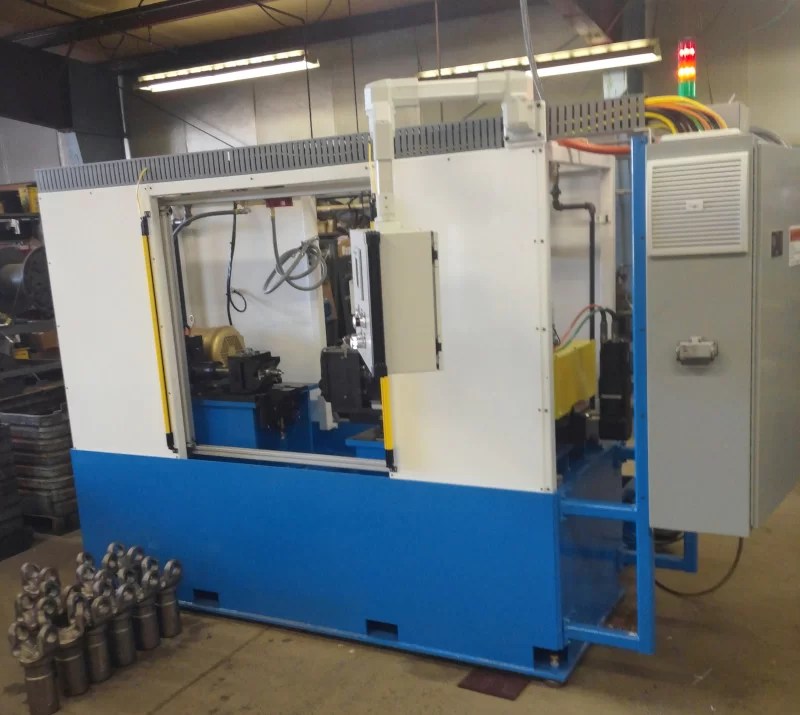

Centering Machine
137H Yoke centering machine
137H Custom Centering fixture for a drive Yoke
131H Shaft centering
137H Steel shaft centering machine
130H steel shaft tail fixture
old centering machine
center drill
160H Yoke Centering
Axle centering
853H Shaft center drill and tap
692H double end bar centering
169H centering machine loader
160H Centering machine tooling
150H Welded yoke axle centering fixture
149H Centering machine tool
150H Centering machine
149H Yoke Centering machine
145H Axle center drill
137H
141H Yoke centering
144H centering machine
130H, 131H, 136H, 137H, 141H, 149H, 150H, 169H Double-End Centering Machine
Face and center a forging or a saw cut bar to prep it for a lathe. Or center, face and OD chamfer. For other custom machine needs, contact Hause Machines
- 24″ ballscrew slide for length adjustment.
- Custom Fixturing based on part specifications.
- Up to 15 HP AC Spindle motor.
- Allen Bradley PLC and HMI
- Face and center drive yokes, transmission shafts, or other Automotive components.
- 80-gallon coolant system with magnetic conveyor.
998H Double-End Boring Machine
Larger 24″ slides and boring spindles on each end. This machine was used for engine heads. A similar machine drills out bull-dozer track for coal mining equipment. Many other parts could use this type of arrangement. For other custom machine needs, contact Hause Machines
- 24″ ballscrew slides with 6″ block spindles.
- Custom Fixturing based on part specifications.
- Up to 15 HP AC Spindle motor.
- Allen Bradley PLC and HMI
- Coal mining equipment, automotive parts, Heavy equipment, or other components.
- 200-gallon coolant system with magnetic conveyor and filter system.
- High pressure thru the spindle coolant.
141H Drill and Tap Spider or U-joint
Servo units all the way around, this machine drills and counterbores the grease ports, and drills and pipe taps the Zerk Fitting hole. For other custom machine needs, contact Hause Machines
- (6) Servo Ballscrew drilling and tapping units.
- Broken Tool Detection
- Custom Fixturing based on part specifications.
- Allen Bradley PLC and HMI
- Automotive U-joit also known as a spider.
- 100-gallon coolant system with magnetic conveyor and filter system.
- High pressure thru the spindle coolant.
